Air showers are widely used in the semiconductor industry, biopharmaceutical industry, biological experiments, precision instruments, microelectronics, food and chemical industries and other industries that require a high degree of cleanliness. They are used to transport people from rooms with a low degree of cleanliness to rooms with a high degree of cleanliness. Dust particles larger than 0.3 micrometers should be retained in all parts to prevent contamination after entering the clean room. At the same time, it also plays an air-buffering role, as an airflow is created when the door is opened. The air shower stops the air flow inside the air shower, effectively preventing the air pollution caused by the air flow.

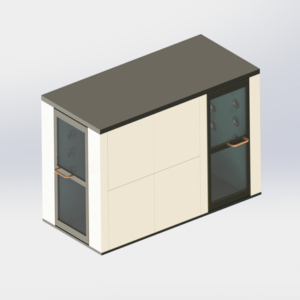

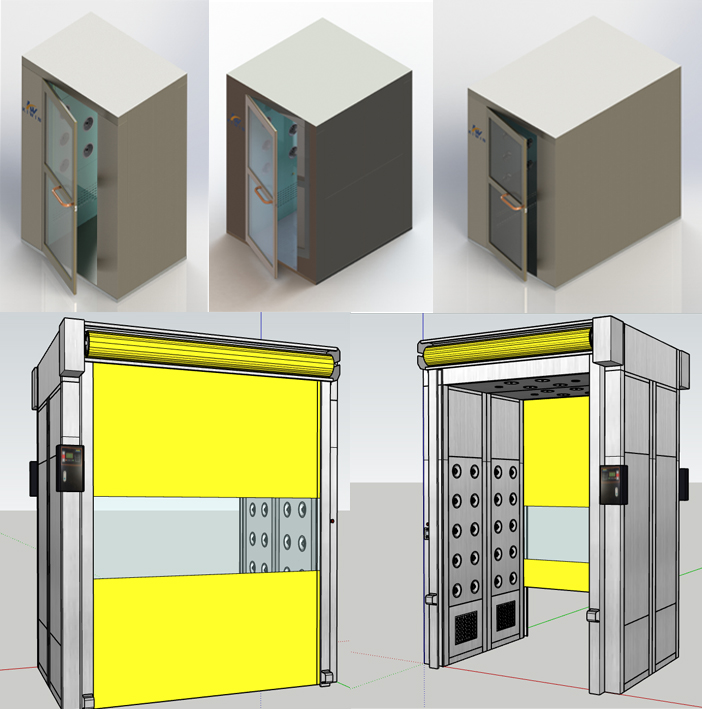

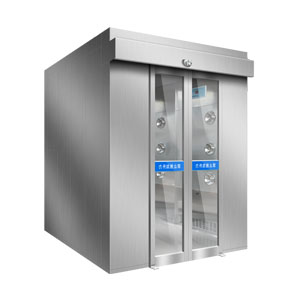

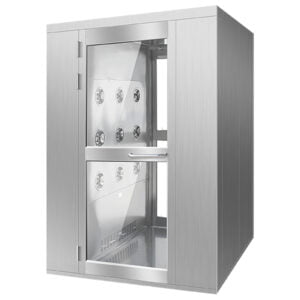

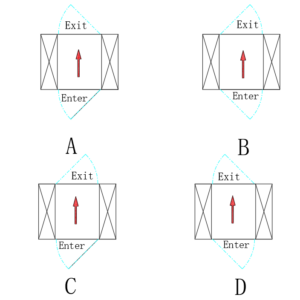

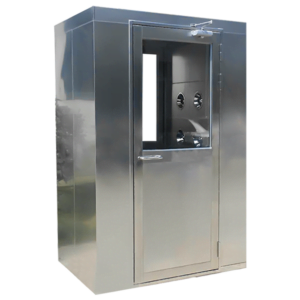

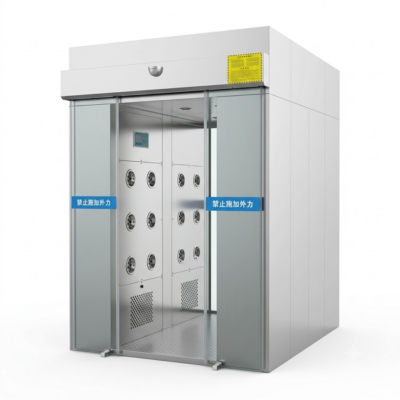

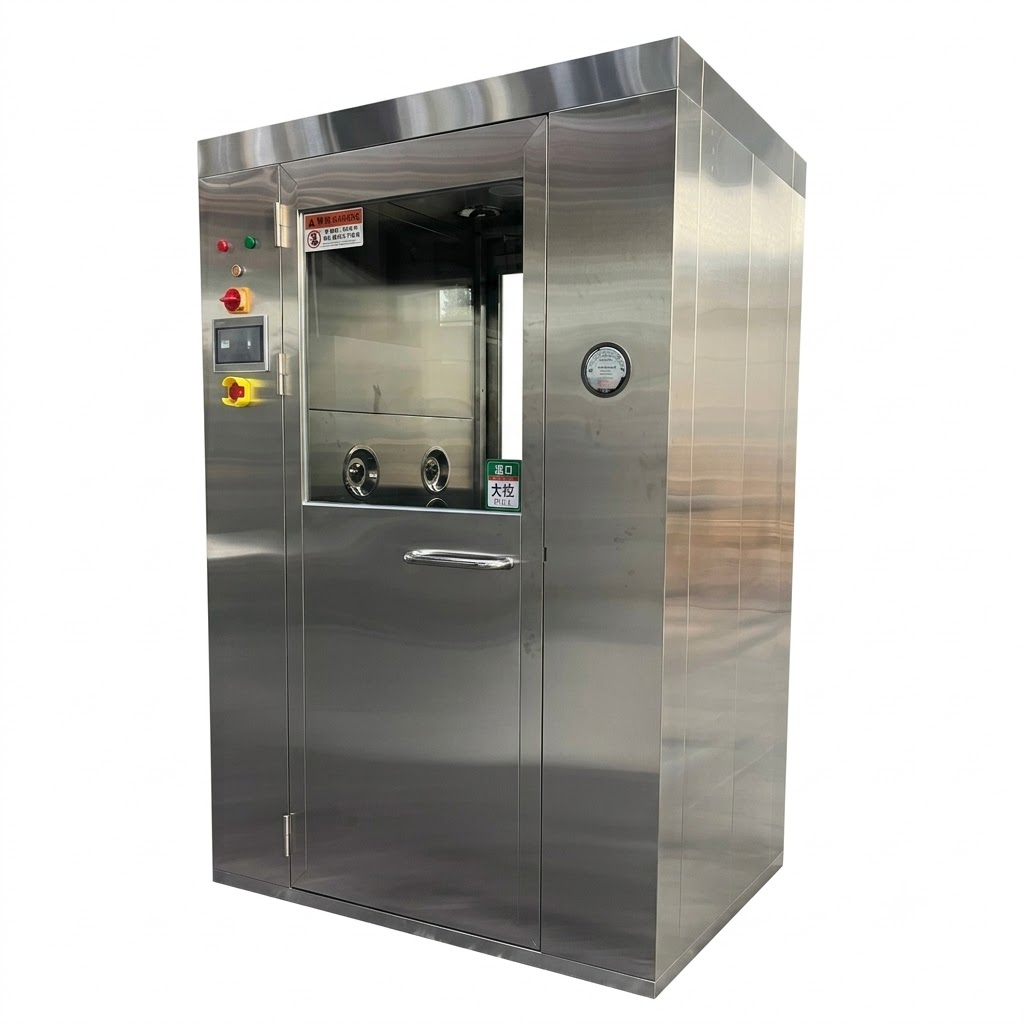

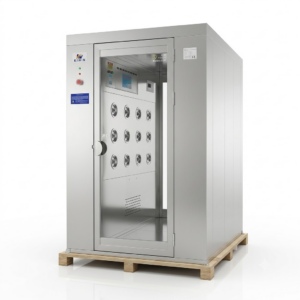

The standard straight thru air shower have 4 choices of door opening direction , Both the entrance and exit door is opened to the outside of the air shower cabin . and the door can also be opened to the inside of the air shower cabin , but it demand the air shower ‘s depth have enough space .The depth of the straigh thru air shower can be 1000-5000mm,and Kiwin air shower have 3 ways of operating sequenece ,Tell us your requirements if you have any questions about the air shower .

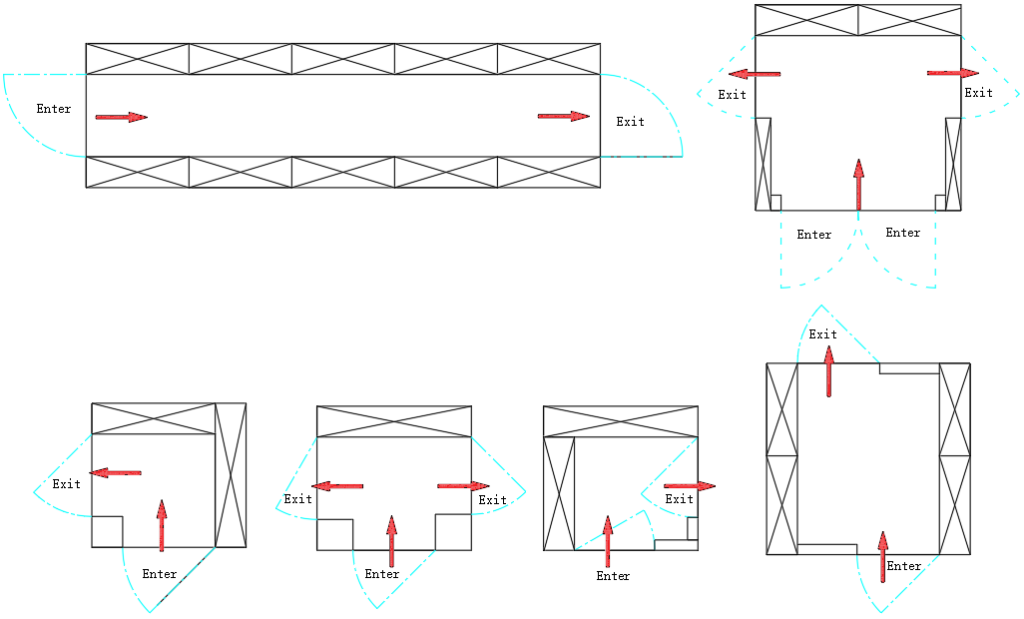

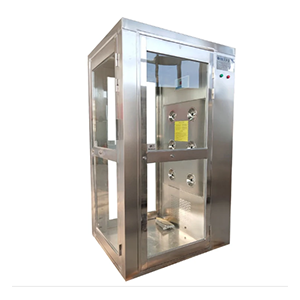

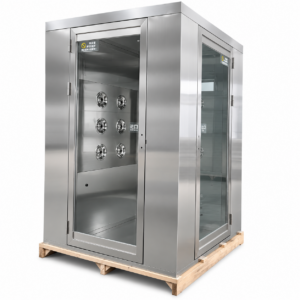

Zhengkiwin machinery as the direct manufacturer of the air shower ,we accept different kinds of specail requirement . Normaly the standard air shower has two doors ,But in some occasions ,sometimes the site where install the air shower is limited , so the air shower needed to be customized “L” or “T” shape . Sometimes the air shower need to have one entrance and 2 exits or 2 entrance and 1 exit . sometimes the air shower need to be customized tunnel shape to pass more persons one time . These functions can be realized in our workshop easily .

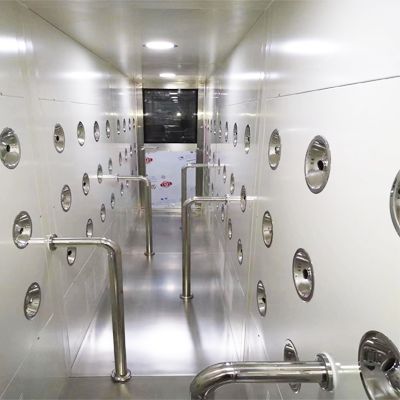

Adding railings to the inner path allows people to walk in S shape, increasing traffic efficiency and providing better blowing effect.

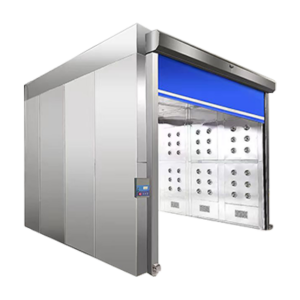

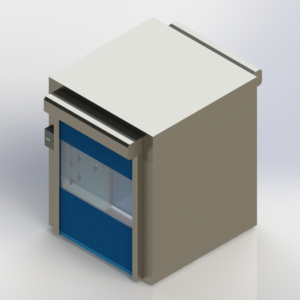

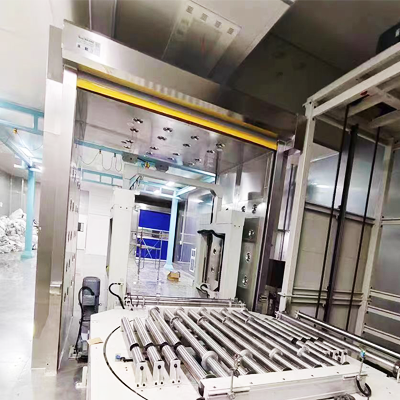

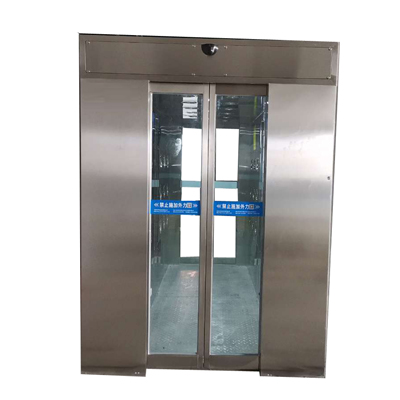

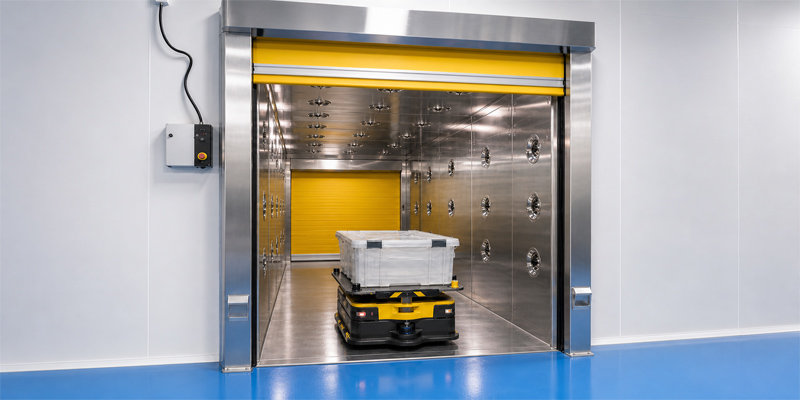

Auto door air shower supports AGV cars, can interact with the car through signals to achieve prodcuts streamlined operation
Touch screen and PLC system

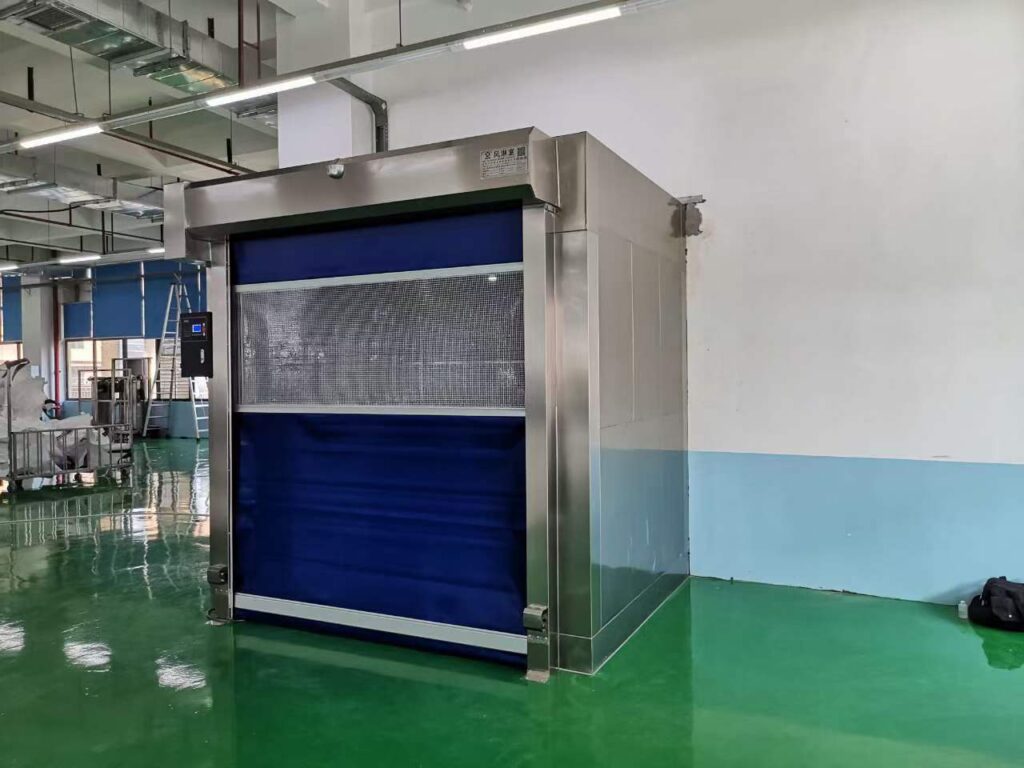

Inteligent air shower with auto door
More easy to operate the air shower .

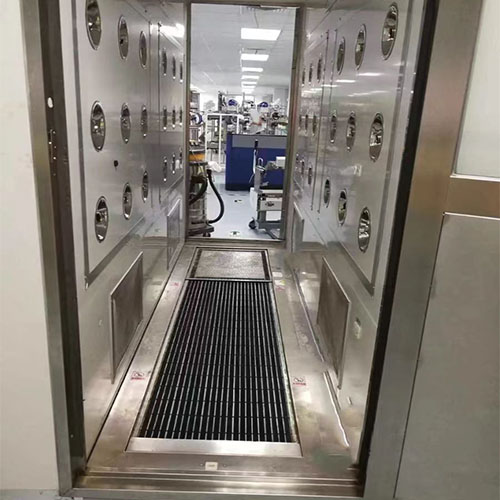

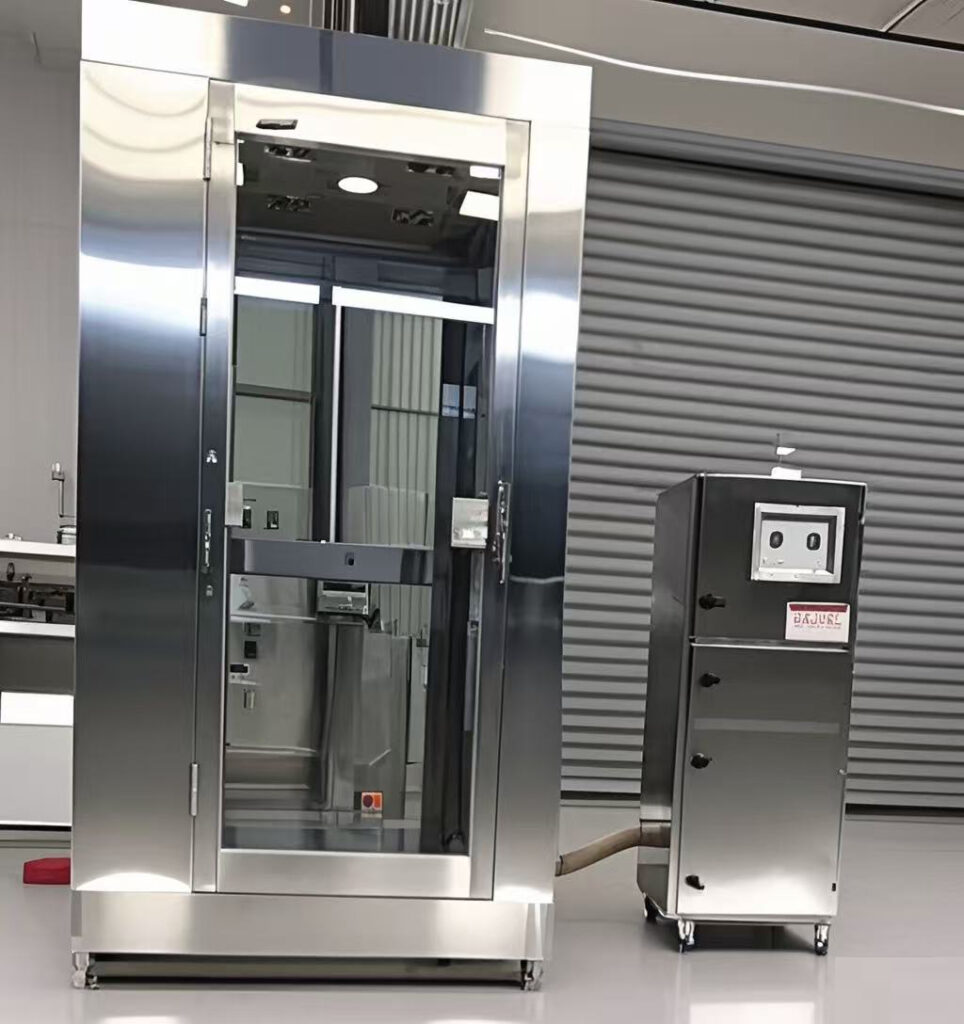

Air shower and sole cleaning machine are in one Effectively remove dirt from workers’ soles and dry them .It is widely used in food processing plant

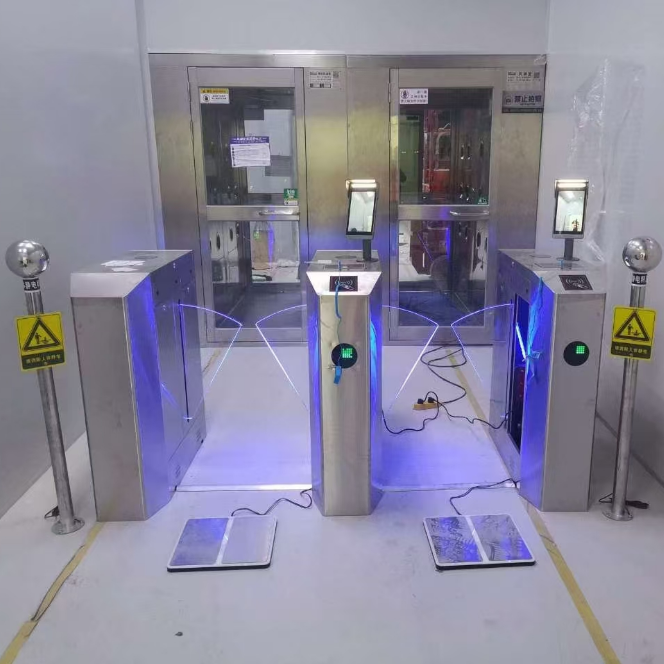

Anti-static brake machine
Air shower with this machine can test and remove static electricity from personnel to prevent damage to workshop equipment caused by static electricity

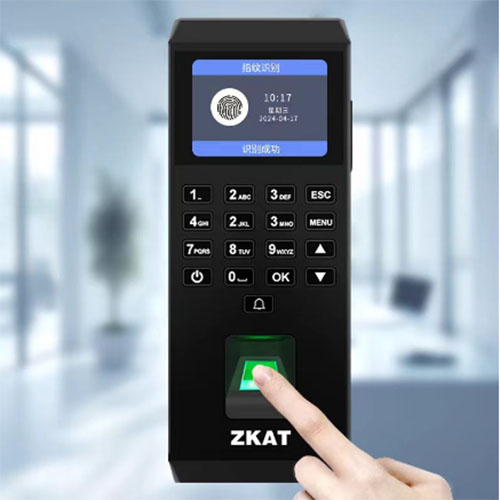

Access Control
Air shower is equipped with access control, which supports face recognition, fingerprint recognition, password and card swipe for entry.

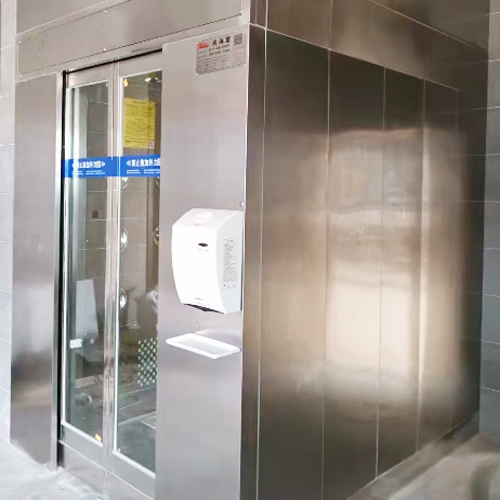

Hand disinfection machine
Person need to have wash their hand by this machine and then the air shower door will open automatic .

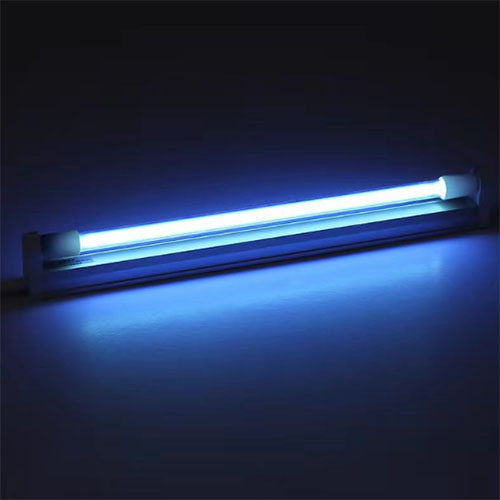

Ultraviolet germicidal lampair
air shower installed a germicidal lamp can effectively sterilize the air shower room ,provide clean air for the cleanroom .
Air shower is also known as clean room air shower, air shower room, air shower tunnel or air shower cabin. The air shower is an extremely versatile local cleaning device that is installed between clean rooms and non-clean rooms. When people and goods enter the clean area from the non-clean area, they must be blown through the air shower. The clean air blown out by the air shower can remove the dust carried by people and goods and effectively prevent or reduce dust sources from entering the clean area. The front and rear doors of the air shower are electronically interlocked and can also act as airlocks to prevent unclean air from entering the clean area.
As an important air purification system, the air shower plays an irreplaceable role in clean rooms or dust-free workshops. It uses fast-flowing air to blow off and clean the surfaces of people or objects, effectively removing dust particles and ensuring that the air quality of the clean room meets the requirements of production or experiment. At the same time, the use of air showers can also improve work efficiency, protect the health of employees and maintain the service life of equipment. With the continuous development of cleanroom technology and the constant expansion of application areas, air showers will play an important role in more and more areas in the future.

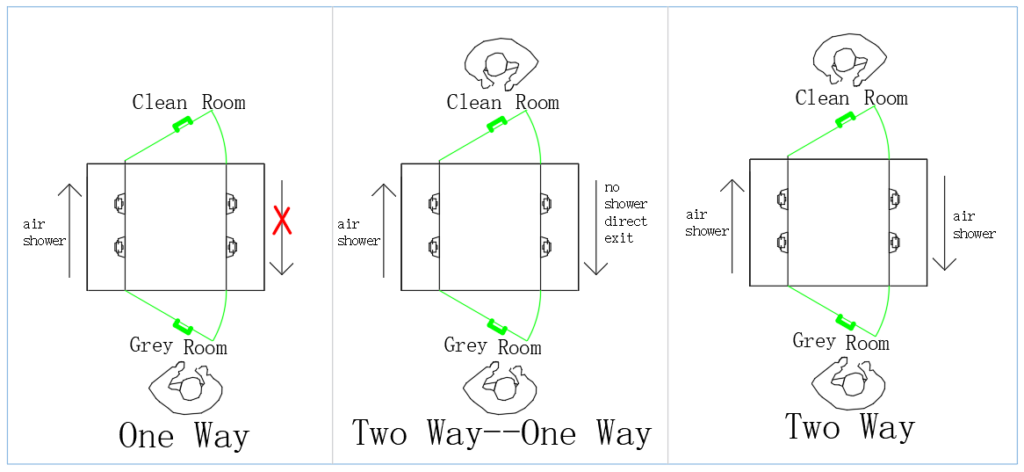

Kiwin Air Shower Operating Sequence
1. One Way （Employee may enter the cleanroom but not exit through the air shower. At the state, the clean side door is locked while the grey side is unlocked. ）
2. Two way–One Way (Employee may enter or exit the cleanroom through the air shower. when enter the cleanroom , the machine will work ,when leaving the cleanroom , the machine does not blow wind .)
3.Two way (Employee may enter or exit the cleanroom through the air shower. In both directions, the air shower is activated)

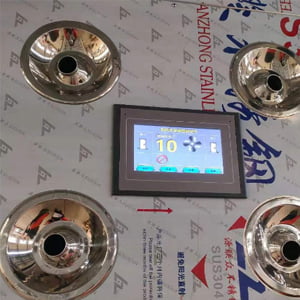

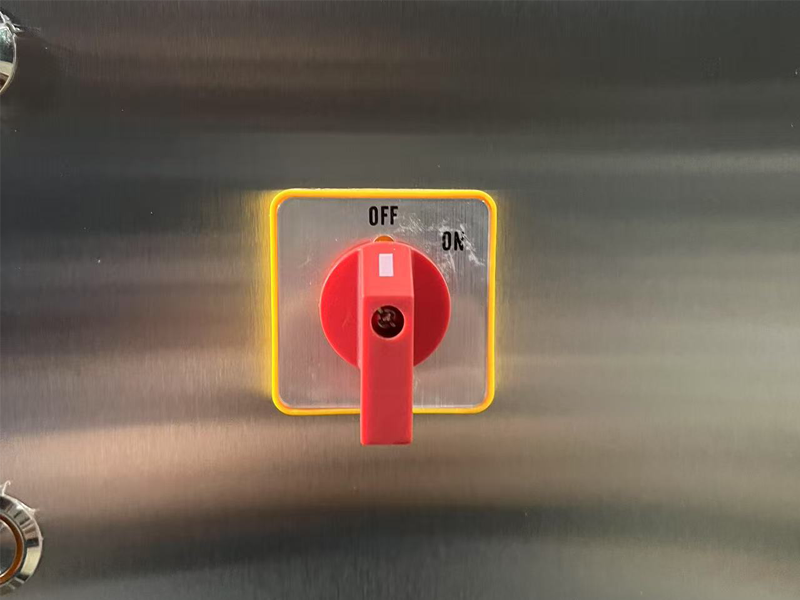

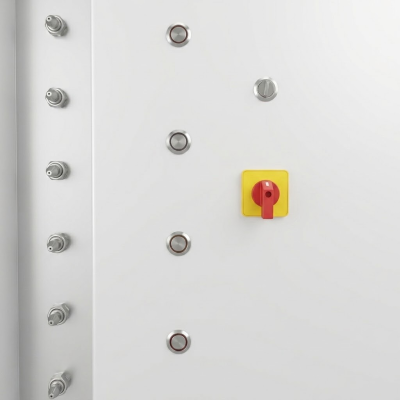

Intelligent voice control panel, Chinese and English prompts, touch screen design, adjustable shower time from 0 to 99 seconds, integrated emergency stop, blower, and light for easy control.

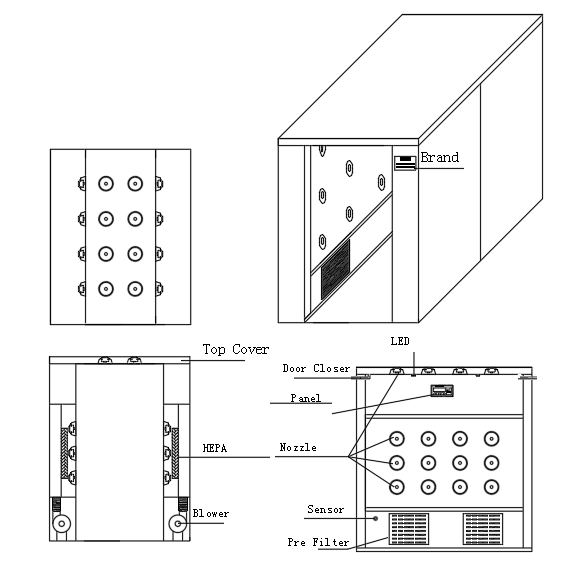

Outside and inside panel are used 1.0mm thickness SS201/SS304 stainless steel or powder coating steel panel .

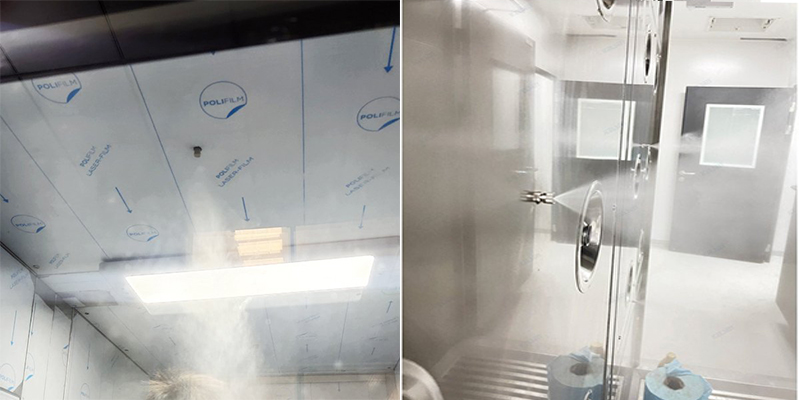

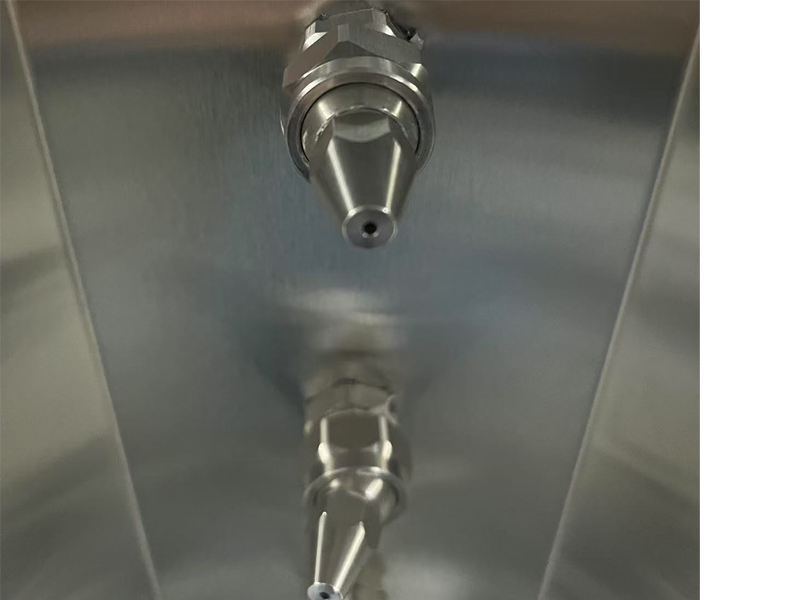

Filtered air is ejected through nozzles at high velocities into the chamber. These turbulent air streams disperse particulate matter on all surfaces throw the SS nozzle.

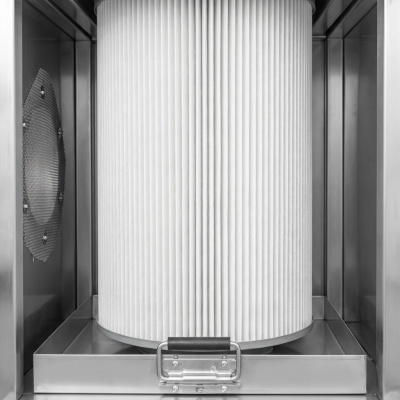

HEPA filter(s) provide 99.99% Typical efficiency for particle size of 0.3 microns.
Our air shower support single phase and 3 phase voltage . Ranged from 110v-440v 50/60hz
The blower impeller is an energy-saving back-curved aluminum airfoil. and the feature is large air volume, low noise, and low energy consumption.
For large-volume air shower equipment, it can be divided into multiple modules, facilitating production, transportation, and installation.
After entering the air shower room, personnel only need to follow the prompts and the air shower can be automatically blown without pressing any buttons.
Our air shower warranty is 3 years for the electrical part , and client just need to replace the filter regularly .
Several factors should be considered before buying an air shower.
1.Purpose and requirements: First of all, the purpose and requirements of the air shower must be clarified. Will it be used for the passage of goods in a clean environment or for the passage of people? What cleanliness requirements must be met? Determine the model and specifications of the airlock room according to the specific requirements.
2.Space and size: Consider the space and size constraints of the installation site. Select the appropriate size of air shower according to the room size to ensure that it can adapt to the existing room layout.
3.Quality and brand: Choose a manufacturer and brand with a good reputation to ensure that the air shower provides reliable quality, stable performance and good after-sales service.
What should we do before installing an air shower?
1.Preparation before construction
Before installing the air shower, some preparations need to be made to ensure the quality of the installation. First, you need to survey the site to determine the required size, height, and other parameters. Secondly, the relevant materials must be inspected to ensure that the accessories are complete and the materials are of high quality.
2.Foundation pouring
The air shower room needs a stable foundation to ensure its stability and safety. When pouring the foundation, it is necessary to carry out the corresponding design and planning according to the site conditions. First, the site needs to be leveled, then the fire work is placed according to the design requirements, and finally the concrete is poured, paying attention to controlling the thickness and uniformity of the concrete pouring.
How to install the air shower ?
Zhengkiwin Machinery provides complete and detailed installation instructions and installation videos. Please read the instructions carefully to fully understand them before starting the installation. If you have any questions during the installation process, please contact our technical staff in time. Most standard machine are shipped in a whole set , you just need to connect the power wire after you get the machine .
If it is necessary we coluld provide on-site service ,the customer will be asked to provide room , board , round-trip transportaion and a normal $80 – $100 daily subsidy per person .
How are Kiwin air shower shipped ?

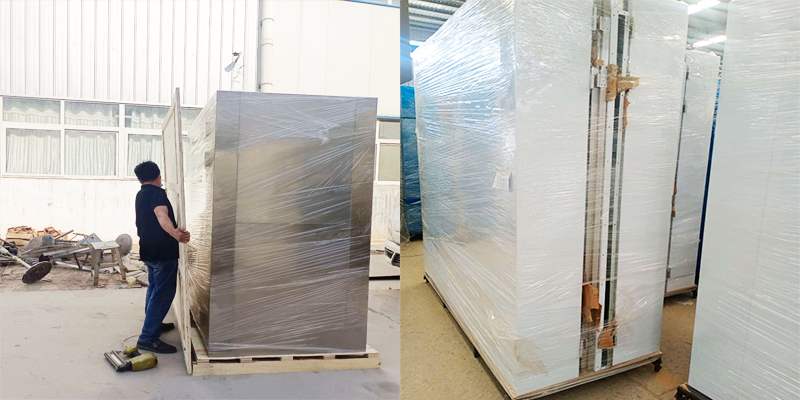

Depending on client request and dimensions of ordered air shower, Kiwin air shower can be shipped in assembled, module or unassembled form. Please refer to the brochure for shipping dimension and shipping volume details. In the picture , the left is assembled air shower , and the right is module air shower .
All our air shower will be packed in plywooden case before sending to the port .
If you want to purcahse air shower prices, Just leave your message now. We also can customize specil kinds of cleanroom air shower by your requirment. You will get replyed in 12 hours.

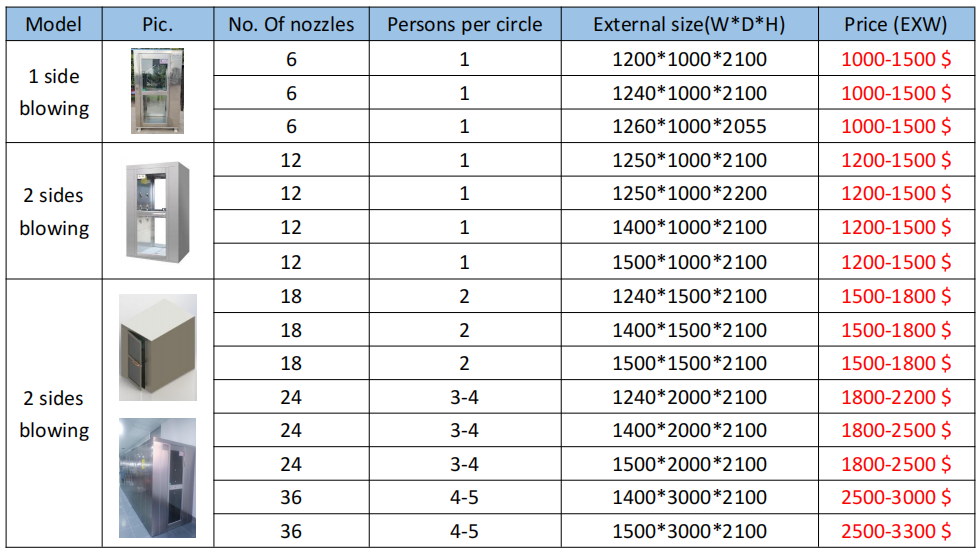

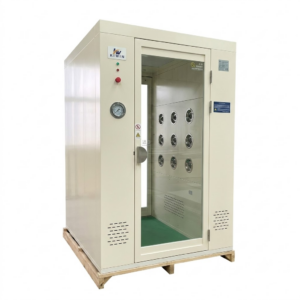

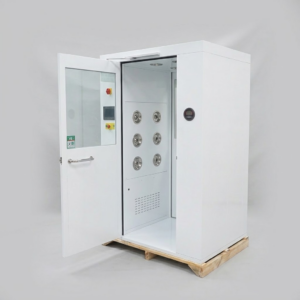

Below are the price of the standard air shower for your reference .
